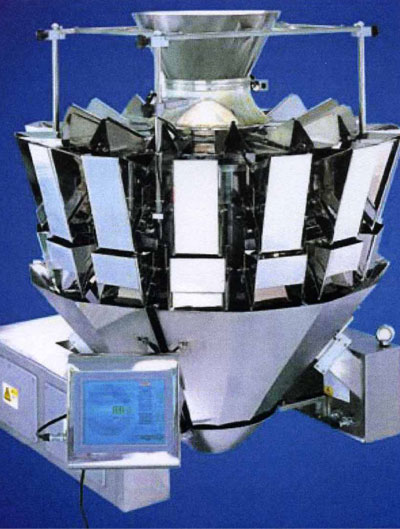

14 Head Autiomatic Scale
Application is for a multitude of dry and process foods and fresh foods.
Features:
• Digital sensors enhances the speed, precision and anti-jamming
capacity
• Statistical Data Inspect on screen and via optional printer output.
• Stainless Steel-Two levels hopper
• Color Display 10.4” LCD with digital input keypad
• Weight Range - 10-1000g
• 120 bags/minute
| Specifications | |||
|---|---|---|---|
| Model No. | Power Requirements Electrical |
Dimensions H x W x D |
Ship Wt. (lbs) |
| Scale 14 | 220v | 40" x 38" x 55” | 890 |

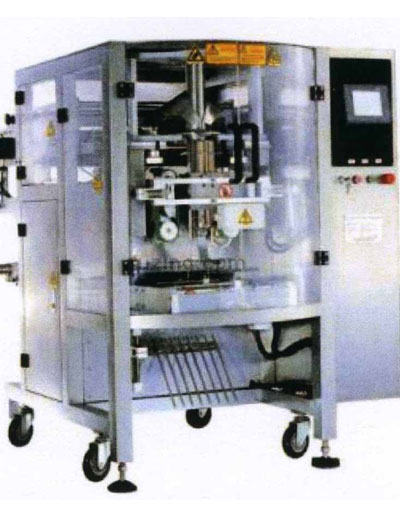

Vertical Form Fill Seal Bagger
Application is for a multitude of dry and process foods and fresh foods.
Features:
• PLC controlled system with color touch screen interface
• Precise positioning with servo film transporting system and end
sealing systems to insure excellent performance, high speed and accurate
packing
• Complete automatic alarm protection function to insure minimize
loss
• English or Metric can be selected
• Numerous Packing style including gusset; bag with hole; bag with
tear notch; Chain; Vacuum bags, etc
• Can be matched with multihead weighters; volumetric cup fillers;
manual bucket conveyors; auger fillers, etc
- Air flushing system
- Hole punch device
- Tear notch device
- Vacuum packing device
- Nitrogen gas flushing
- Flip device
- Material stopper
- Static charge eliminator
- Gusset device
- Safety switch and relay
- Bag support
- 4 lines folding device
- Air expeller
- Safety device
- PE sealing system
- Film tracking device
Technical Data:
• Max. film width 600mm /23 5/8”
• Bag width 90-285mm/3/5” - 11.25”
• Bag length 50-330mm/ 2” - 13”
• Packing Speed Max. 100 bpm
• Power Supply 220V / 60 Hz / 4.3 kw
• Air Consumption 7 cfm
• Humidity 90% or less
