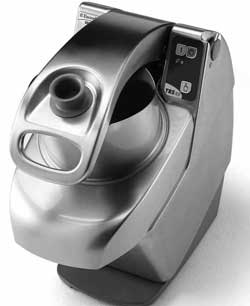

Vegetable Slicer & Dicer

Chops, slices, dices, cubes, shreds and grates vegetables up to 500 lbs. per hour.The large hopper is designed for high volume slicing and dicing requirements. Stainless steel.
Includes 2 blades - 5/32" Grating Blade and 1/8" Slicing Blade. Not all blades listed. Please call for additional blade information.

Specifications
Model
No.		 Power Requirements
Electrical		 Dimensions
H x W x D		 Ship Wt.
(lbs.)
603356 115v - 1 hp. 20" x 20" x 20" 53

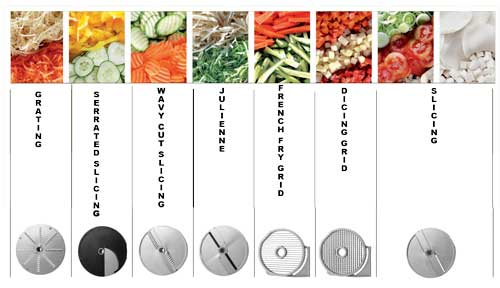

Blades and Grids   Ref.
Dicing Blades 5/16" MT08T - 653148
3/8" MT10T - 653149
1/2" MT12T - 653480
3/4" MT20T - 653150
Slicing Blades 1/32" C1 - 653101
1/16" C2 - 653102
1/8" C3 - 653103
1/4" C6 - 653106
5/16" C8 - 653108
3/8" C10 - 653110

Julienne Blades 1/16" AS2 - 653214
1/8" AS3 - 653153
5/32" AS4 - 653154
Grating Blades 1/16" J2 - 653162
1/8" J3 - 653163
5/32" J4 - 653164
9/32" J7 - 653167
Wavy Cut 1/8" C3W - 653112
Serrated Slicing 1/16" C2C - 653112
1/8" C3C - 653113






Blades
